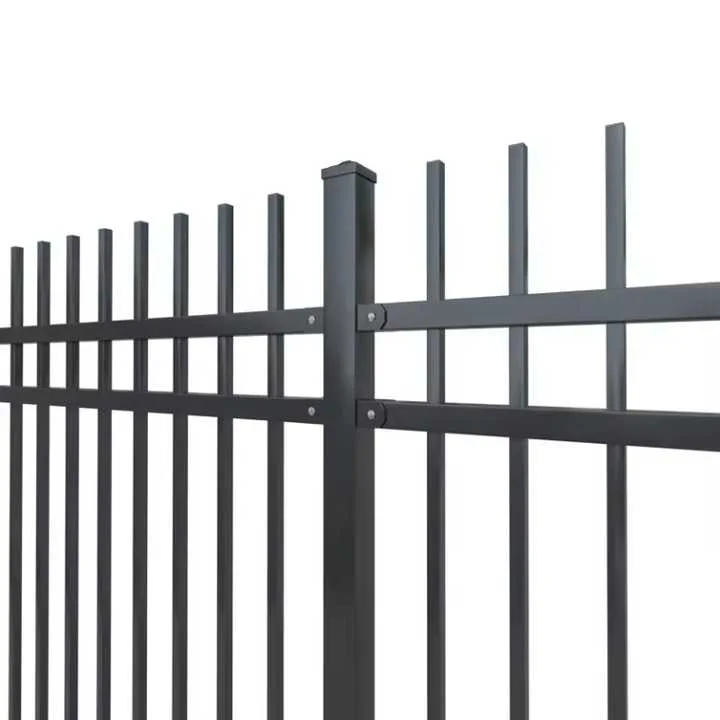

Rod Top Rackable Fence Panels
– Dual – Adjustable: Both top and bottom can be extended, providing flexibility for different installation scenarios.
– Protective Plug: The square-tube plug on the top prevents dirt and moisture entry, extending the panel’s lifespan.
– Solid Structure: The through-welded construction makes the panel sturdy and able to withstand external forces.
– Pre-assembled structures are easy to install.
– Can be customized to meet individual needs and local regulations.

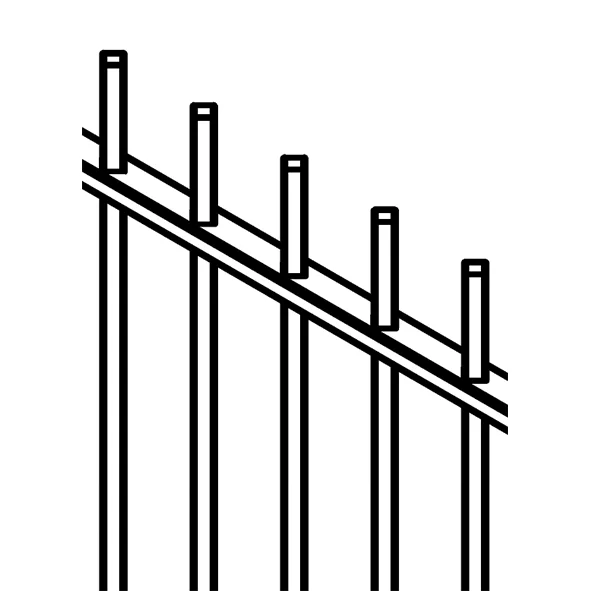

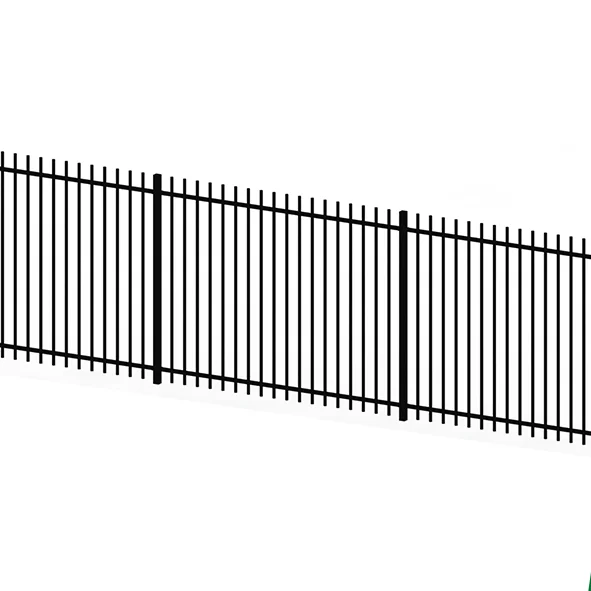

FENCE DEPOT ’s Rod Top Rackable Fence Panel, which is similar to Rod Top Fence Panel, but delivers unmatched adaptability for challenging installations. Designed with extended top and bottom rails, this panel seamlessly adjusts to slopes and uneven terrain through its integrated bracket system. The result is a uniform, visually consistent barrier that maintains structural integrity across diverse landscapes.
Crafted from structural-grade hot-dip galvanized steel tubing, our panels undergo a multi-layer electrostatic powder coating process. This dual protection ensures exceptional resistance to corrosion, UV exposure, and extreme weather, making them ideal for long-term outdoor use in residential, commercial, and industrial environments.
Additionally, we pre-assemble panels with anti-tamper fasteners, post brackets, and caps to streamline installation. Standard dimensions of 2400mm in width and 860mm–2400mm in height, combined with a 1.2mm minimum wall thickness, provide robust security while accommodating site-specific needs. For high-risk areas, wall thickness can be customized up to 2.0mm.
As a trusted manufacturer, FENCE DEPOT’S Fence further supports specialized projects with tailored designs. Our team collaborates closely with clients to meet regional safety regulations and aesthetic preferences, ensuring every solution balances functionality with seamless integration into its surroundings.
Product Specifications
1. Residential Rackable Fencing
|
size (H) inches |
size (H) mm | size (W) inches | size (W) mm | Number of Horizontal Rails | Number of Vertical Pickets | Weight (kg.) |
| 34 | 863.6 | 94 | 2387.6 | 2 | 20 | 17.46 |
| 46 | 1168.4 | 94 | 2387.6 | 2 | 20 | 21.05 |
| 58 | 1473.2 | 94 | 2387.6 | 2 | 20 | 24.63 |
| 70 | 1778 | 94 | 2387.6 | 2 | 20 | 28.22 |
| Material | Steel or Aluminum | |||||
| Finish | Powder Coating | |||||
| Color | Black, Customized Colors | |||||
| 5/8″picket-18 ga.-15*15*1.2mm | ||||||
| 1-3/16″x 1-5/64″x 1-3/16″rail-14 ga.-30*27.4*30*2.0mm | ||||||
| 94″Panel | ||||||
| Center Distance of Vertical Pickets 116mm | ||||||
| As a professional Rod Top Rackable Fence Panel manufacturer, we can customize various specifications of products according to needs or usage scenarios. | ||||||
2. Commercial Rackable Fencing
| size (H) inches | size (H) mm | size (W) inches | size (W) mm | Number of Horizontal Rails | Number of Vertical Pickets | Weight (kg.) |
| 46 | 1168.4 | 94 | 2387.6 | 2 | 20 | 31.09 |
| 58 | 1473.2 | 94 | 2387.6 | 2 | 20 | 36.39 |
| 70 | 1778 | 94 | 2387.6 | 2 | 20 | 41.70 |
| 82 | 2082.8 | 94 | 2387.6 | 2 | 20 | 47.00 |
| 94 | 2387.6 | 94 | 2387.6 | 2 | 20 | 52.30 |
| Material | Steel or Aluminum | |||||
| Finish | Powder Coating | |||||
| Color | Black, Customized Colors | |||||
|
3/4″picket-18 ga.-18*18*1.2mm |
||||||
| 1-9/16″x 1-3/16″x 1-9/16″rail-14 ga.40*30*40*2.0mm | ||||||
| 94″Panel | ||||||
| Center Distance of Vertical Pickets 120mm | ||||||
| As a professional Rod Top Rackable Fence Panel manufacturer, we can customize various specifications of products according to needs or usage scenarios. | ||||||
Product Advantages for Rod Top Rackable Fence
- Slope Adaptability: Adjustable bracket system for slopes up to 15° without site modification.
- Corrosion Resistance: Pre-galvanized steel tubing + multi-layer powder coating (salt spray resistance >1,000 hours).
- Structural Integrity: Wall thickness: 1.2mm (standard), customizable to 2.0mm for high-impact zones.
- Installation Efficiency: Pre-assembled post brackets and caps reduce on-site labor by 30%.
- Custom Specifications: Tailored dimensions (height/width); material grades (steel types); powder coating methods (e.g., electrostatic, epoxy); color options (RAL codes or custom samples).
- Low Maintenance: Tamper-resistant fasteners and UV-stable coatings ensure 10+ years of service life.
- Compliance Ready: Designs adaptable to regional safety standards (e.g., anti-climb, load-bearing).

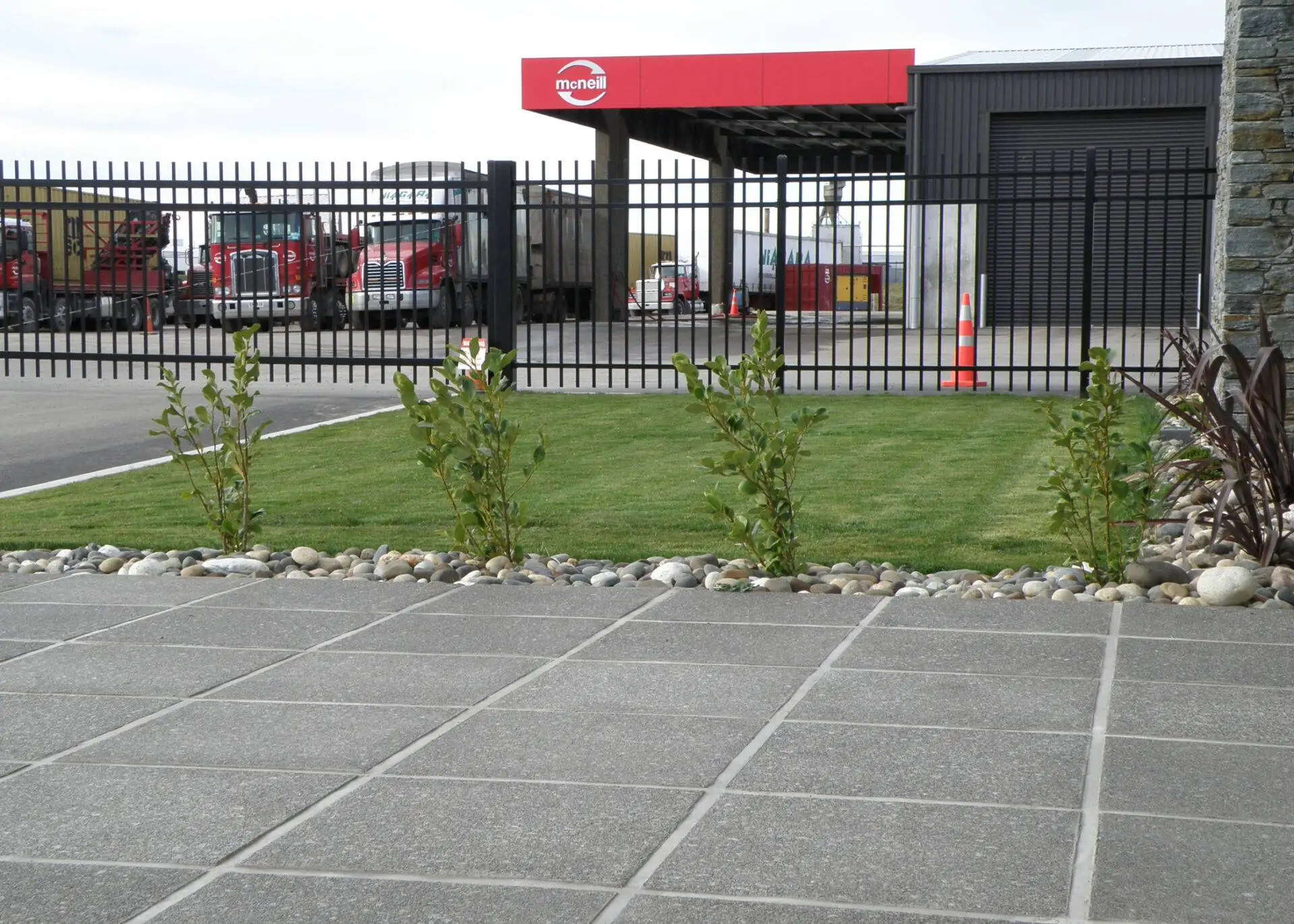

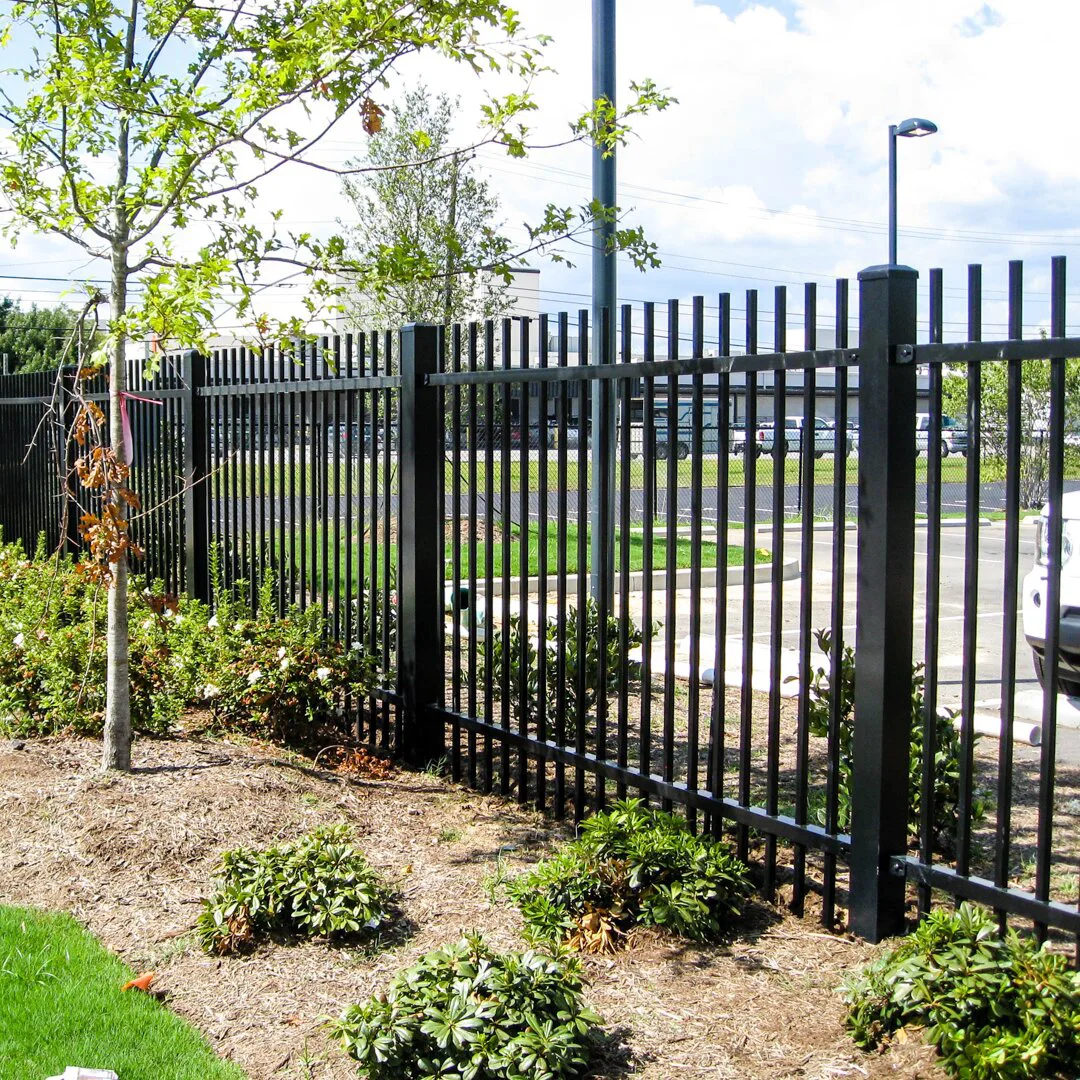

Rod Top Rackable Fence Applications
The Rod Top Rackable Fence is designed to provide a versatile boundary solution. First, it is flexible to various terrains and different security needs. Thanks to its unique step-type mounting structure, this fence can easily adapt to slopes or uneven ground, simplifying the installation process. In addition, depending on the corrosion-resistant material and adjustable structure, the Rod Top Fence can adapt to various environments and combine functionality and aesthetics.
- Residential Communities – Perimeter fencing for homes, villas, or gated neighborhoods.
- Commercial Complexes – Securing parking lots, retail spaces, or office parks.
- Industrial Zones – High-security barriers around warehouses, factories, or hazardous areas.
- Public Infrastructure – Boundary demarcation for schools, hospitals, or government facilities.
- Transportation Hubs – Safety fencing near highways, railways, or airports.
- Sloped Landscapes – Stable installations on uneven ground or hillside properties.
- Temporary Sites – Modular setups for construction zones or event venues.
- Coastal/High-Humidity Areas – Long-term use in regions prone to saltwater exposure or extreme weather.

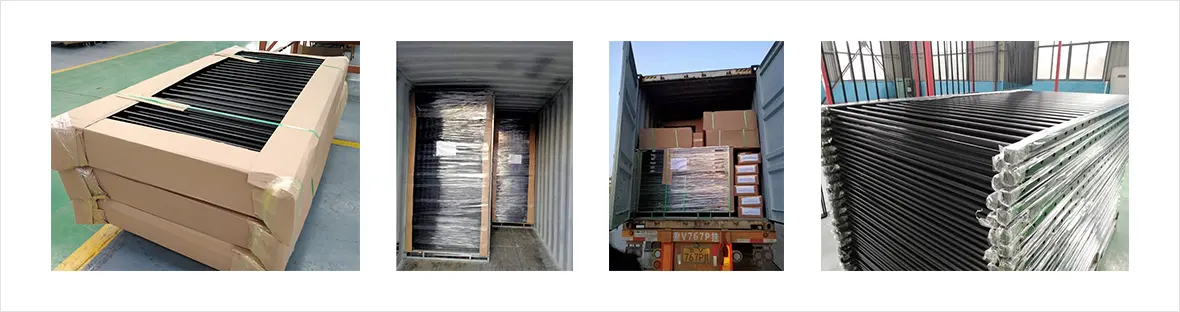

To ensure your order arrives in perfect condition, we employ a robust packaging process.
- Each product is carefully wrapped in medium-thick stretch film and secured to an iron pallet. Moreover, four-corner cardboard protection is added to prevent damage during transit.
- For added security, packing tape is used to tightly bind the entire package. In cases where multiple pallets are shipped, we utilize plywood or iron racks to separate them, preventing shifting and potential damage. (Packaging may be adjusted based on specific product requirements or customer requests.)
- We understand the importance of efficient unloading. That’s why our products are palletized, allowing your team to easily unload them using a forklift. In addition, all bulk products are individually packed in cardboard to prevent scratching and maintain their pristine condition.
- We utilize reliable sea shipping for fast and stable transportation. This ensures that your order arrives promptly and safely, minimizing any potential delays.
