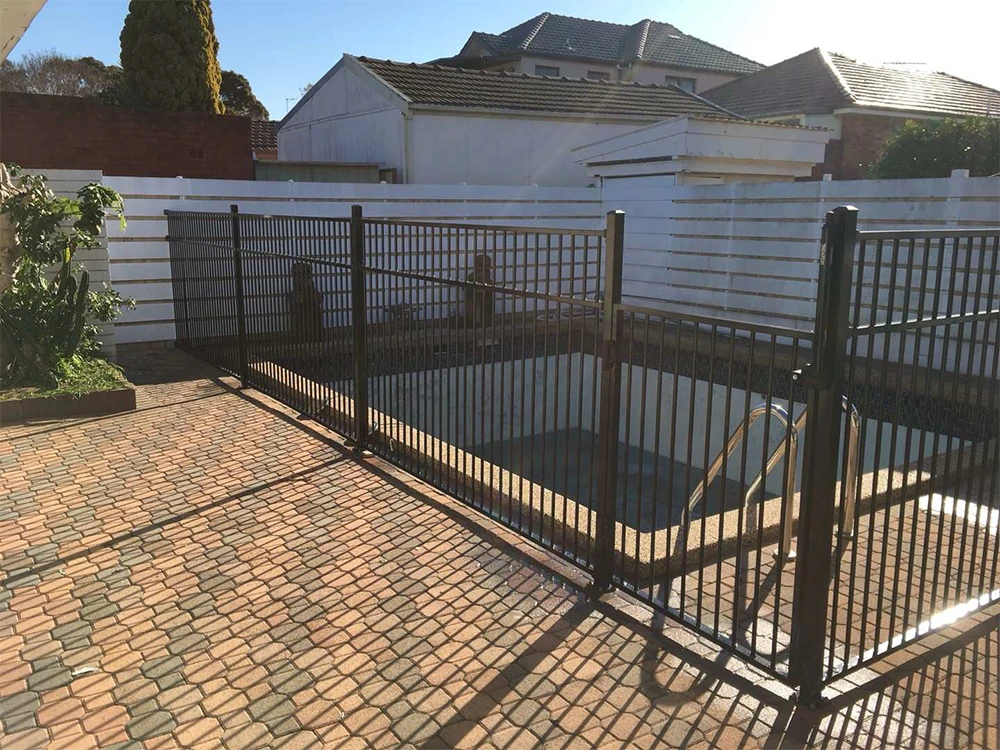

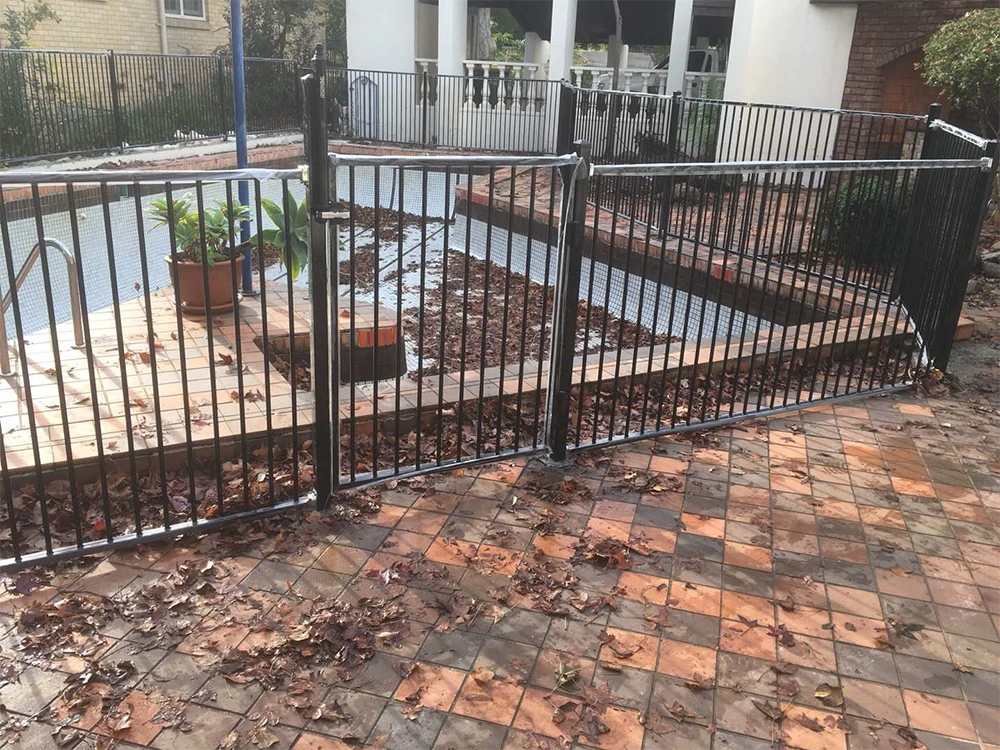

For families or commercial places with swimming pools, pool safety is always a top priority. Like an aluminum pool fence, a well-designed, sturdy, and durable pool door is not only a line of defense but also an important element to enhance the overall aesthetics. This article will explore the characteristics of aluminum pool gates, production processes and other key points. In addition, we also provide a wealth of customization options, including but not limited to custom sizes, welding methods, colors, powder coatings, and hardware accessories to meet customers’ specific needs.
Aluminum Pool Gate Production Process
Raw Material
The first and most crucial step in aluminum pool gate production is the thorough inspection of raw materials. This ensures that the aluminum tubes and powder coatings meet industry standards. Inspecting all incoming raw materials thoroughly. We mainly use high-strength aluminum alloy profiles. The dimensional requirements for aluminum tubes are extremely strict, including outer diameter and wall thickness. Controlling the tolerance within 0.15 mm to ensure the structural strength and stability of the product.

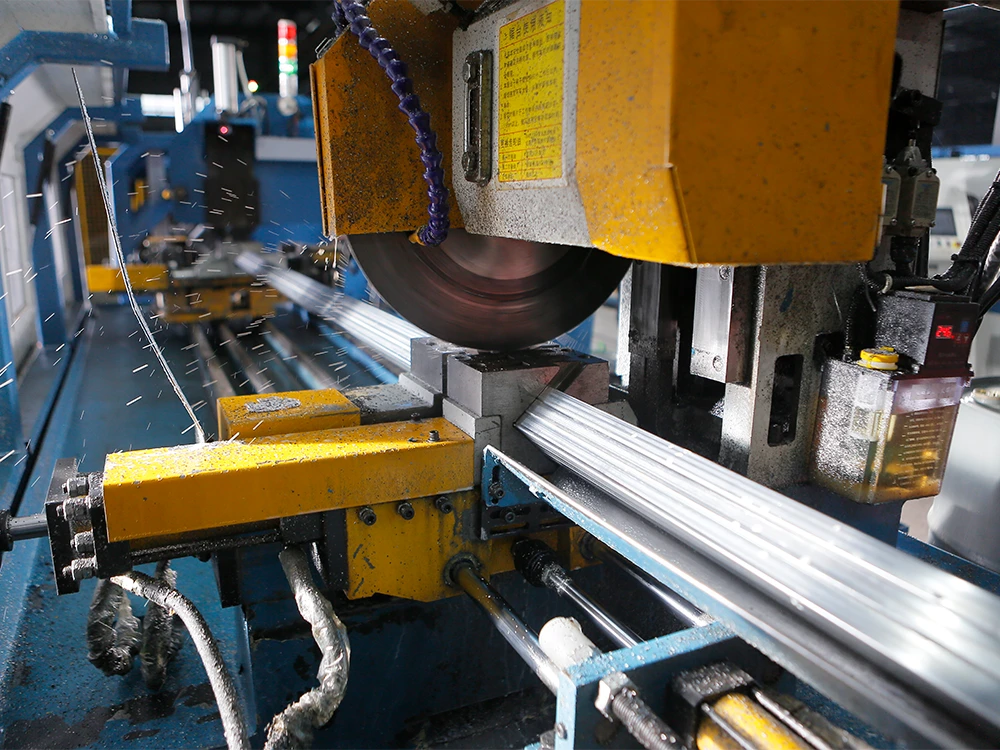

Cutting
Once the raw materials pass inspection, they move on to the cutting phase. We use high-precision CNC cutting equipment to cut round and square aluminum tubes to the exact length specified by the design. The cutting accuracy can be controlled to 0.5 mm. Square tubes usually form the horizontal beams in the gate frame, while round tubes are used as vertical rods. Precision cutting at this stage ensures that all components can be accurately aligned during the subsequent assembly process, thus ensuring the structural integrity and visual beauty of the final product.

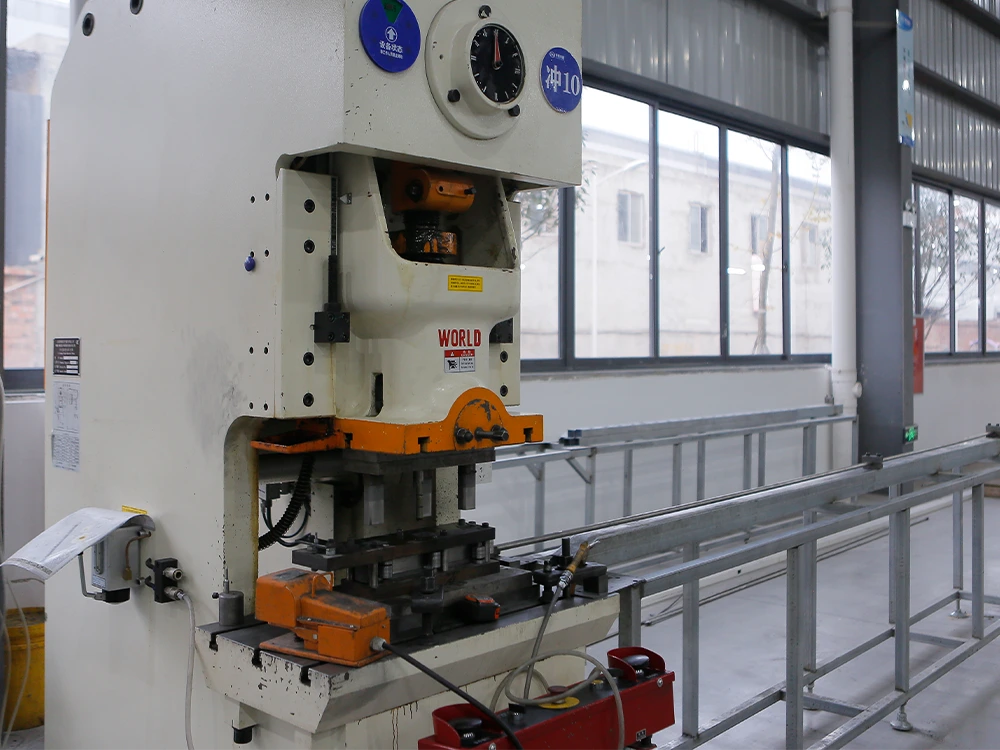

Horizontal Beam Punching
Once cut, the horizontal beams go through a punching process to create the necessary holes for the vertical rods. We do this with a CNC punching machine, which allows for very small hole position deviations and a precise match between the hole diameter and the outer diameter of the vertical rod. The punched holes on the top horizontal beam are blind holes, allowing the vertical rod to be inserted only to a certain depth, while the holes on the bottom horizontal beam are through holes, allowing for a secure connection with the vertical tube and double-sided welding.

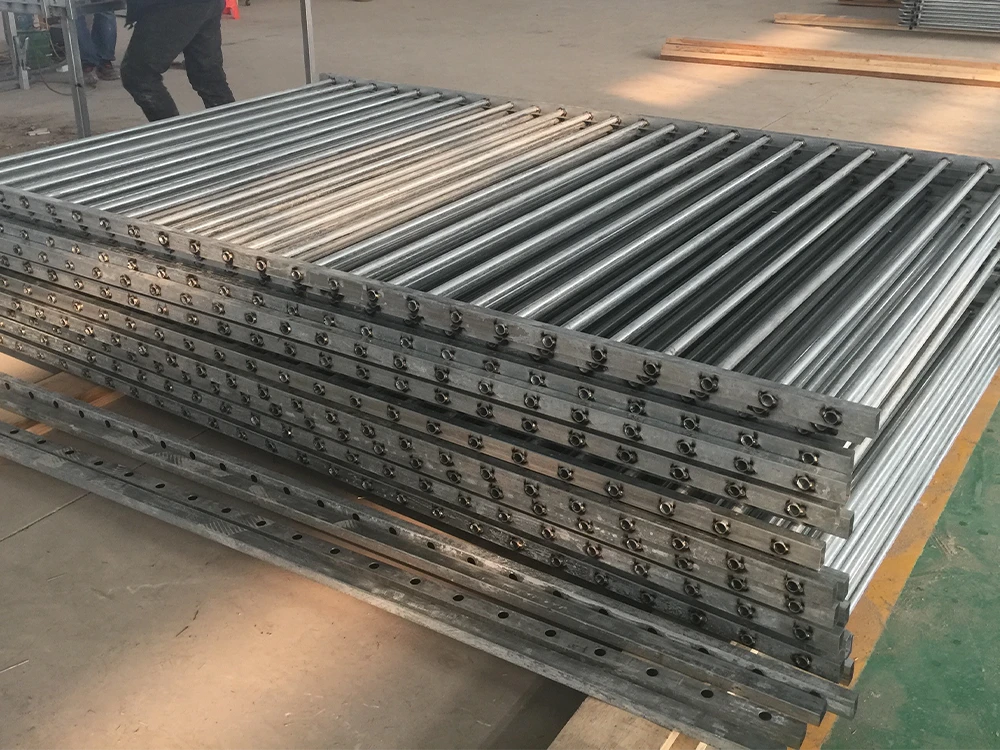

Welding
Welding is a critical part of the aluminum pool gate production process. The top horizontal beam with blind holes is welded to the vertical tubes only on the sides, while the bottom horizontal beam, with through holes, requires dual-sided welding on both the top and bottom of the joints. The spacing of the vertical bars must be consistent, and the welding points on all bars should be symmetrical, with a weld point length of at least 5mm on each side. This step guarantees that the gate maintains its structural strength while presenting a clean, professional appearance.

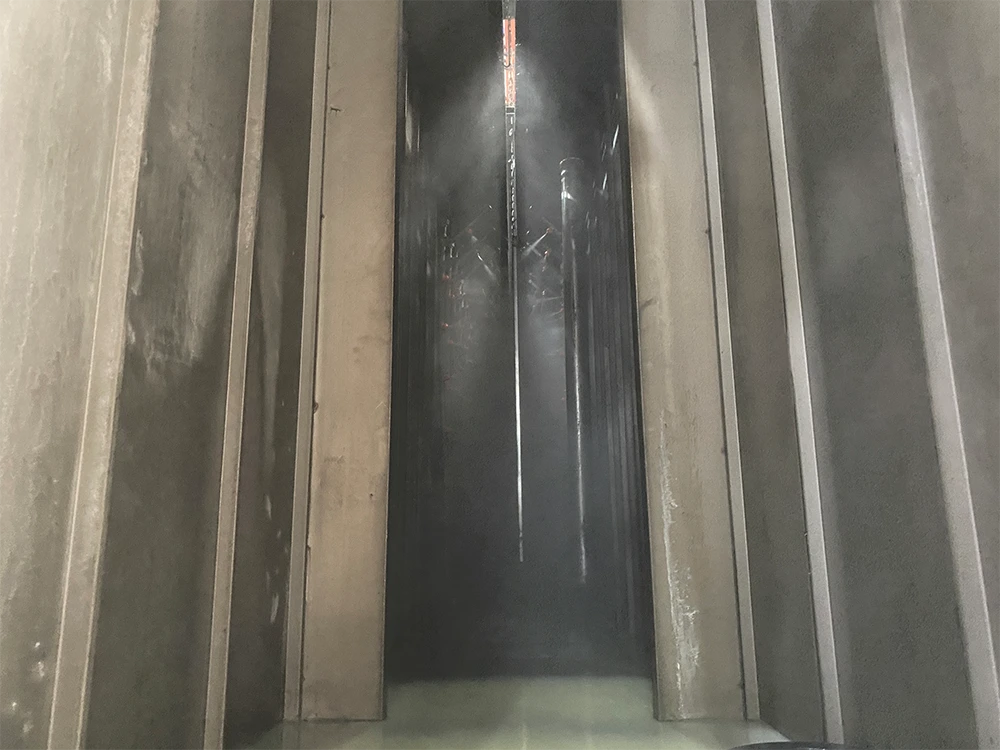

Chromium-Free Passivation
After welding, the gate undergoes a chromium-free passivation process. The aluminum surface is thoroughly treated to form a dense and uniform protective film with a thickness of about 50-200 nanometers. This passivation process can not only significantly improve the corrosion resistance of aluminum, but more importantly, it can greatly enhance the adhesion of the next stage of powder coating.

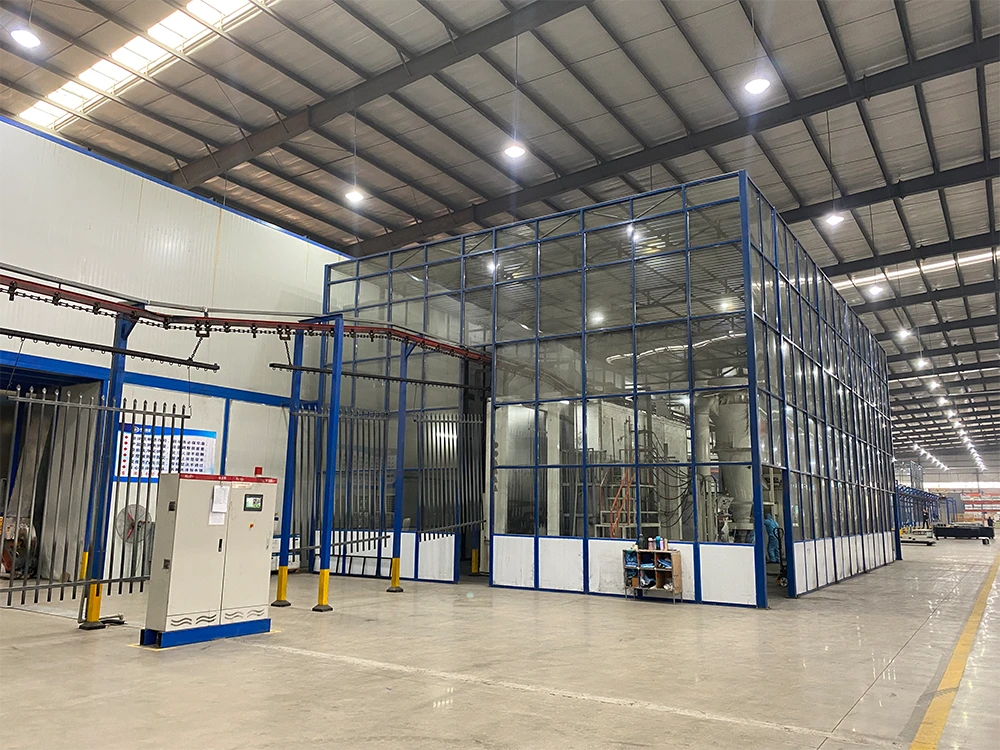

Powder Coating
The gate is then moved into the powder coating stage, where epoxy-polyester powder is evenly sprayed over the surface. The coating thickness is precisely controlled between 80-120 microns, ensuring excellent weather resistance, scratch resistance and corrosion resistance. The sprayed gate will be cured at a high temperature of 180-220℃ for 20 minutes to form a hard and uniform protective coating.

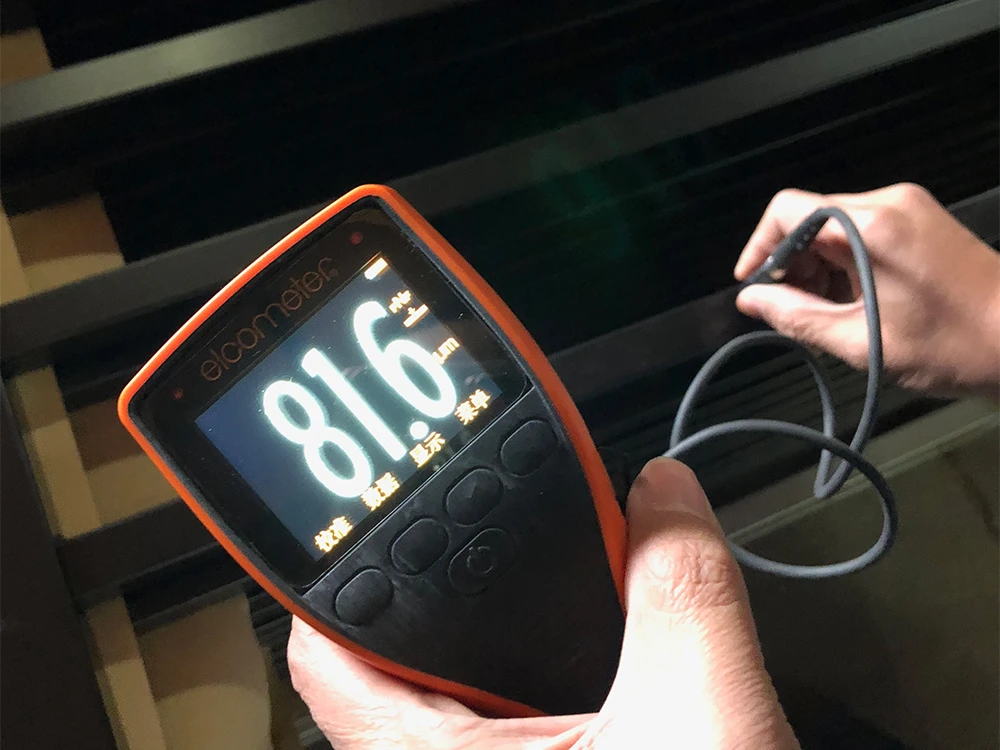

Quality Inspection
Once the powder coating is complete, the gates undergo a rigorous quality inspection. This phase ensures that all dimensions, coatings, and welds meet the highest standards. Inspectors check the finish for uniformity in color and texture. Then verify the weld points and overall structure are free from defects. Any discrepancies are immediately addressed, as quality control is vital to maintaining a high standard of production.

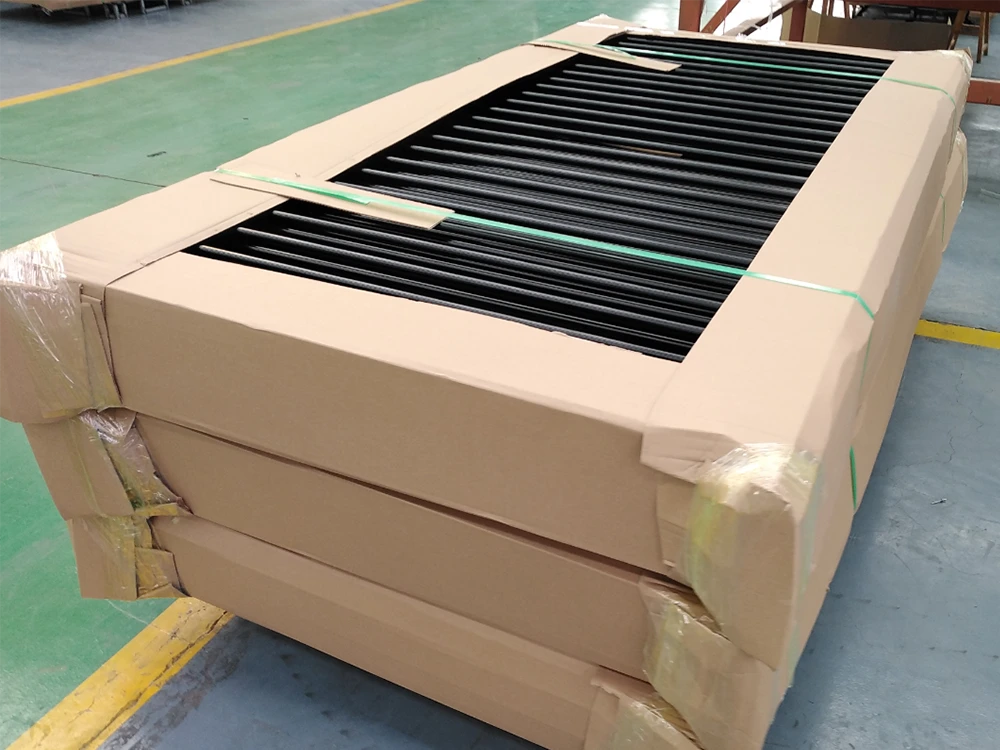

Packaging
The final step in the aluminum pool gate production process is packaging, which ensures that safely transported the gates to their destination without damage. Wrapping each product initially with stretch film to prevent scratches. Using cardboard sheets to protect vulnerable areas like corners, securing the gates onto metal pallets with sturdy packing straps. For bulk shipments, additional protection such as plywood or metal frames is placed between pallets to prevent shifting during transport. These packaging practices ensure that the gates arrive in perfect condition, ready for installation.
Customization Options for Aluminum Pool Gates
One of the key advantages of our aluminum pool gates is their high degree of customizability. We offer tailored solutions to meet the specific needs of each customer. Ensuring every gate fits perfectly with the design and functionality of the pool area.
Horizontal Beams Customization
- Outer Diameter: Customers can choose different diameters for the horizontal beams to suit the strength and aesthetic needs of the gate.
- Wall Thickness: Thicker beams provide additional strength, which is essential for larger gates or those exposed to harsh weather conditions.
- Quantity of Beams: Adjust the number of horizontal beams based on the gate’s design, with more beams providing increased stability and a more robust appearance.
Vertical Tubes Customization
- Outer Diameter: We offer a variety of diameter options for the vertical tubes, allowing for both slimmer or thicker profiles depending on the design preferences.
- Wall Thickness: Like horizontal beams, vertical tubes are available in different wall thicknesses to ensure structural integrity and durability.
- Quantity of Tubes: Customers can specify the number of vertical tubes, which influences the spacing between them, providing either a more open or enclosed gate design.
Welding Methods
- Single-Sided Welding: This method is ideal for gates requiring a clean appearance on one side while ensuring strong connections on the other.
- Double-Sided Welding: This method strengthens the joint, offering increased durability for gates in high-traffic or high-wind areas.
- Circular Welding: We also offer full-circumference welding for specific applications, providing enhanced durability.
- Weld Length: We can customize the length of the welds, with longer welds offering more strength at the joint.
Surface Treatment Options
- Top Coat: A single coat of high-quality finish is available for customers seeking basic protection and aesthetic appeal.
- Primer + Top Coat: For enhanced durability, we recommend applying a primer followed by the top coat, ensuring long-term protection against corrosion and weathering.
- Special Requirements: We can also accommodate special requests for additional layers or specific surface treatments. Such as anti-corrosion coatings or UV-resistant finishes.
Advantages of Our Aluminum Pool Gates
As a professional aluminum pool gate manufacturer, we offer a range of advantages that set us apart from the competition:
- Custom Solutions: We provide extensive customization options for every aspect of the gate. From dimensions to surface treatments, ensuring the product meets the specific requirements of our clients.
- Advanced Welding Techniques: Our specialized welding methods guarantee strength and durability, ensuring long-lasting gate performance even in challenging environments.
- High-Quality Surface Treatments: We offer premium powder coatings and optional primer applications. It enhances corrosion resistance and extends the product’s lifespan.
- Precision Manufacturing: Our strict quality control measures and advanced production techniques. Ensure every gate meets the highest standards of quality and durability.
- Efficient Packaging: We offer custom packaging solutions.Our gates arrive in perfect condition, whether shipped locally or internationally.
Conclusion
The 8-step aluminum pool gate production process involves a series of precise and technical steps. Focus on quality, durability, and precision, we produce gates both visually appealing and highly functional. As a leading manufacturer in this field, we ensure that our aluminum pool gates meet the highest standards. Whether you’re looking for reliable aluminum pool fences or customized gates, we are the best choice for your project.
