When people talk about fence systems, they often focus on the material, design, or height of the fence panels. However, there is another crucial but often overlooked component, that is brackets. They are the key link between fence panels, posts, and the ground. According to statistics, more than 20% of fence damage cases are related to improper bracket selection or installation defects. Whether for temporary fencing at construction sites or permanent installations in residential, commercial, or industrial settings, choosing the correct bracket type is essential. In this blog, we’ll explore 8 common types of fence brackets and their specific uses, advantages, and installation methods. We will also discuss the custom options available to meet your unique fencing requirements.

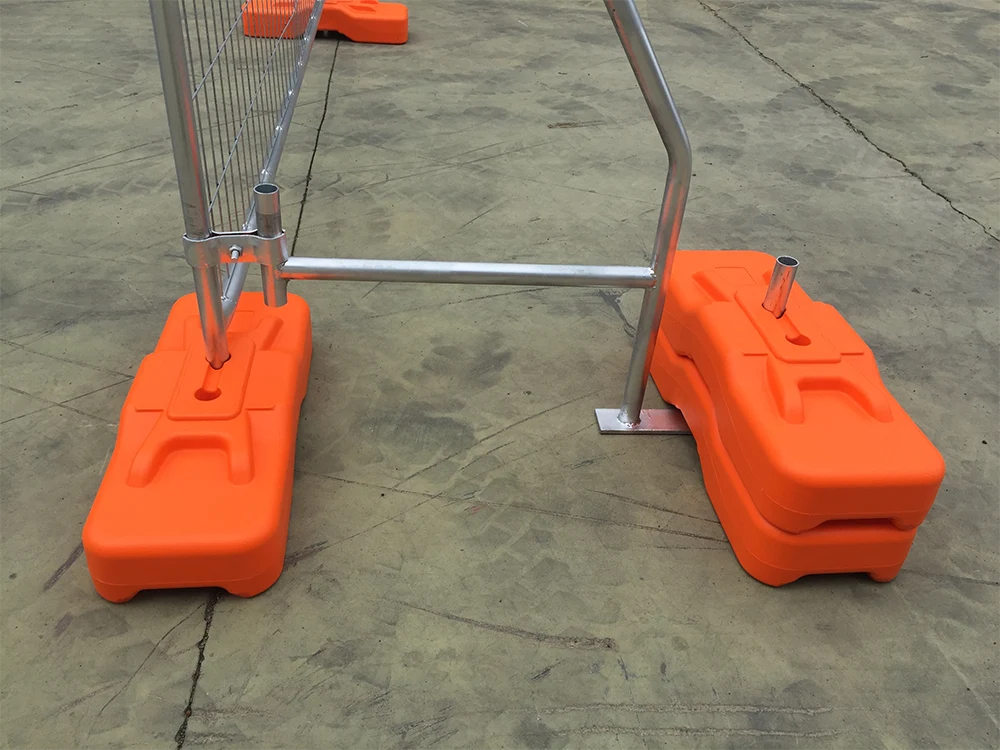

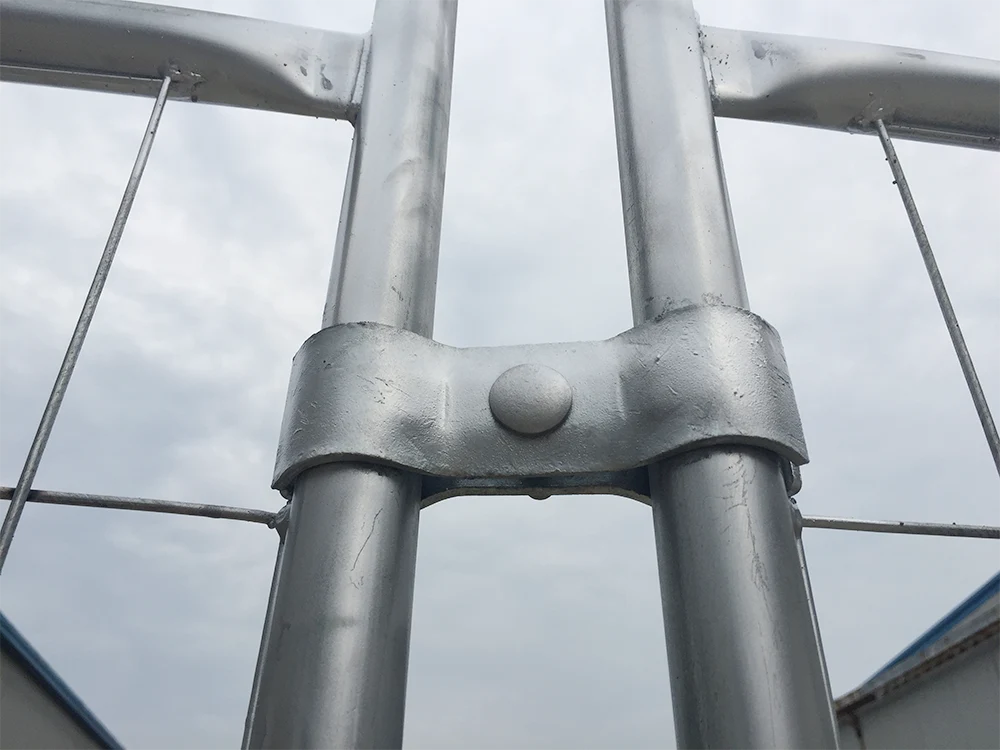

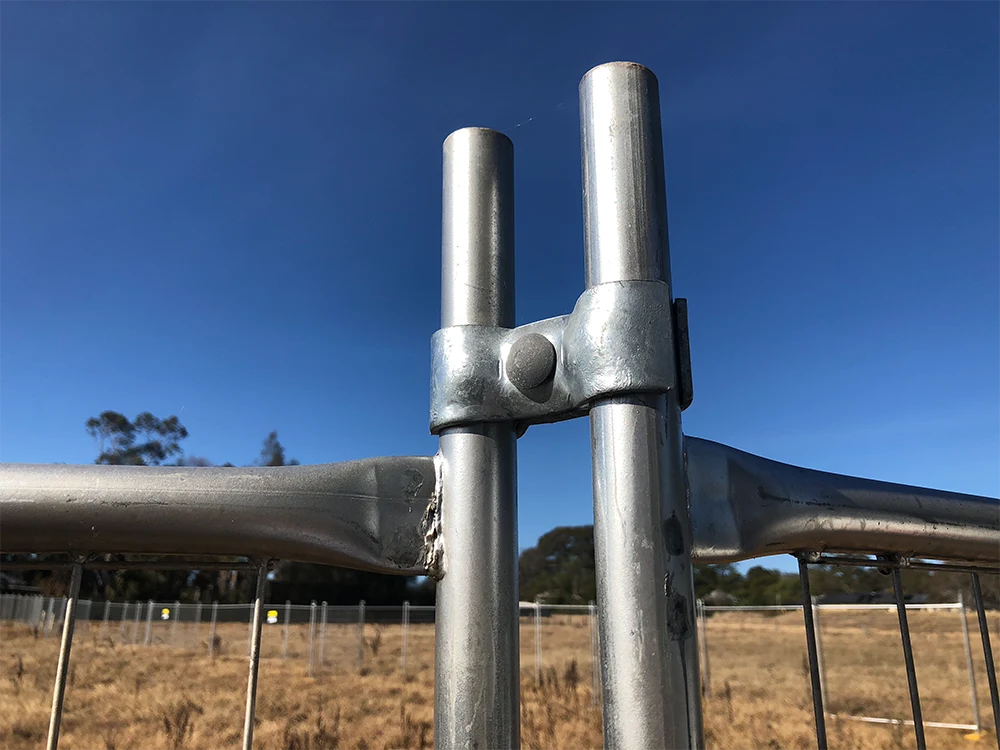

Temporary Fence Clamp
Temporary fence clamps are critical for securing portable fencing solutions. These clamps, often made from durable steel, are designed to connect fence panels, providing stability in temporary setups like construction sites or public events. Their strength lies in their simplicity; they are easy to install and remove, making them ideal for situations where fencing needs frequent adjustment.
Advantages:
- Quick installation and removal, the average installation speed has increased by more than 50%.
- Reusable for multiple projects.
- Cost-effective solution for short-term fencing. For a short-term fencing solution, the initial investment cost is 70% less than permanent brackets.
Application: Used in construction, public events, and crowd control systems.
When it comes to temporary solutions, the temporary fence clamp offers flexibility and efficiency that no other type can match.

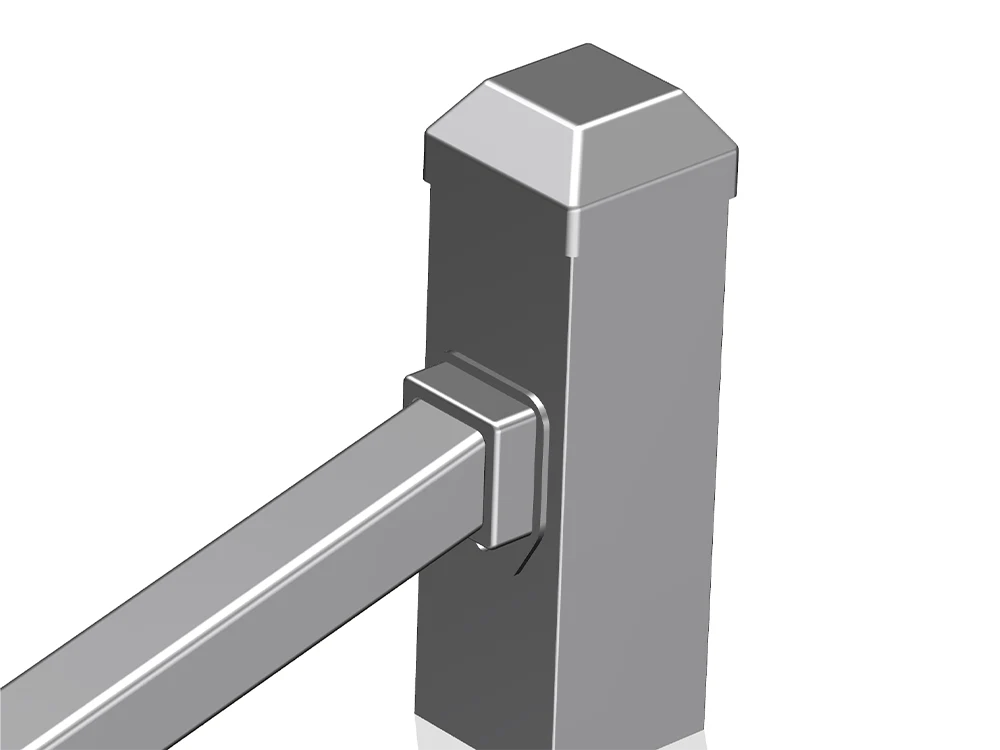

Single Wing Double Hole Bracket
A single wing double hole bracket is a common type of fence connection to a post or wall, designed to provide a secure and flush anchor. This bracket is usually made of galvanized steel or stainless steel with a thickness of 2.5mm to 3.0mm to ensure sufficient strength and corrosion resistance.
Advantages:
- Strong and reliable attachment.
- Suitable for both metal and wood fences.
- Compatible with various fence designs.
Application: Best used in residential fencing and light commercial installations.
Transitioning from temporary solutions, the single wing double hole bracket offers a more permanent and robust solution.

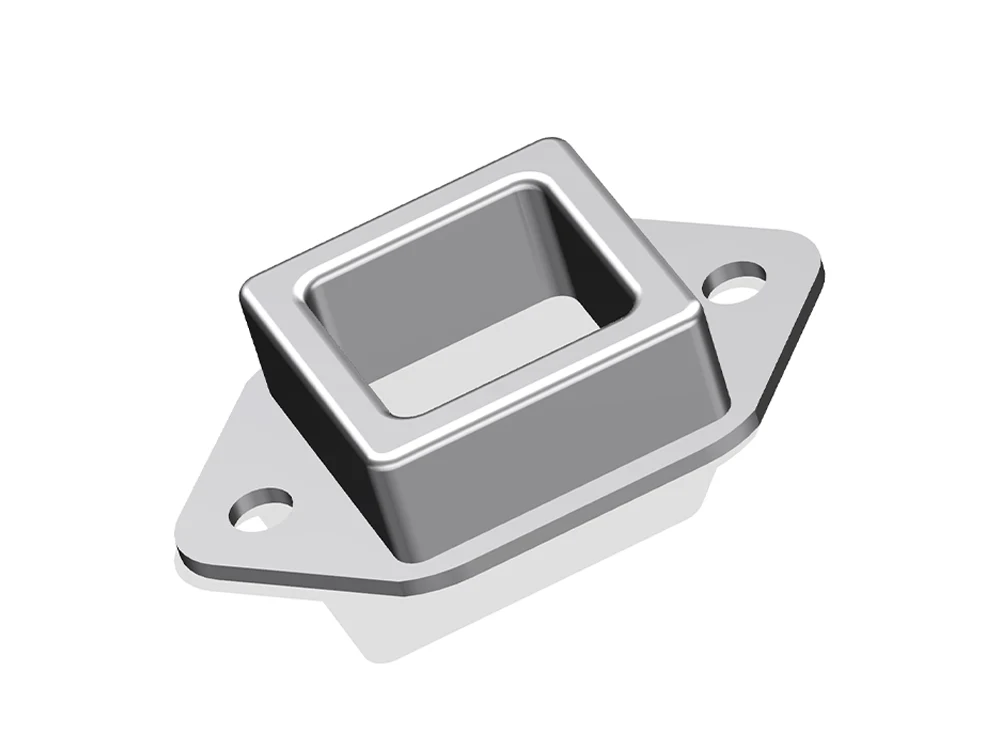

Double Wing Double Hole Bracket
The double-wing double-hole bracket has two outwardly extending wings designed to provide a stronger connection than single-wing brackets. They are commonly manufactured from structural steel with a thickness of 3.0mm to 4.0mm. The double-hole construction allows for the use of multiple fasteners.
Advantages:
- Superior strength and durability.
- Ideal for high-security applications.
- Compatible with heavy-duty materials like steel and aluminum.
Application: Often used in industrial and security fencing.
If your project requires extra support, the double wing double hole bracket provides unmatched durability and strength.

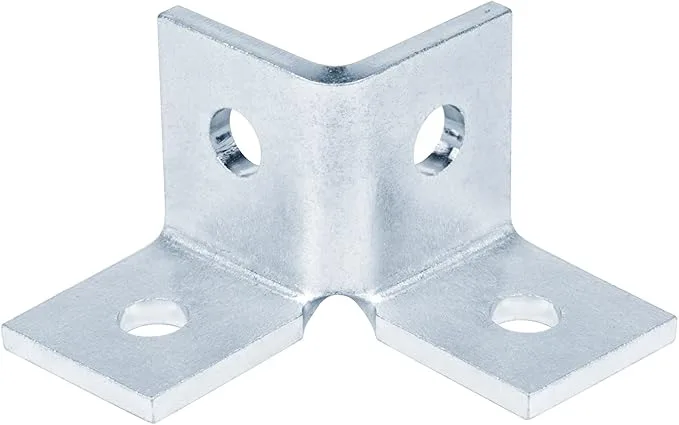

Double Wing Four Hole Bracket
The double-wing four-hole bracket takes the security of fence connection to a new level, using four fastener points to achieve an ultra-stable connection. This bracket usually uses heavy-duty structural steel above 4.0mm.
Advantages:
- Maximum stability with four fastener points.
- Best for high-wind areas or heavy-load fences.
- Versatile across various fence materials.
Application: Frequently seen in industrial complexes and heavy-duty commercial fencing.
When stability is a priority, the double-wing four-hole bracket provides a solution that stands the test of time.

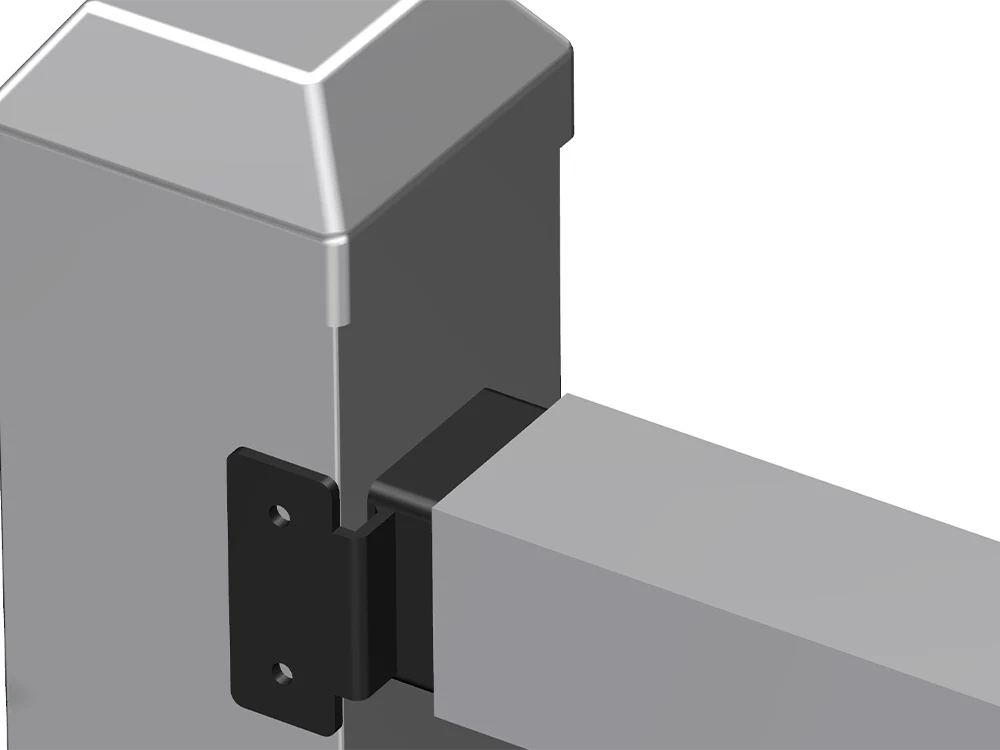

L-Shaped Security Rail Bracket
L-shaped brackets are widely used in security rail installations due to their ability to create right-angled joints. These brackets are designed to anchor rails securely to posts, thus making them essential in security applications like prisons, government buildings, or facilities requiring enhanced perimeter security.
Advantages:
- Perfect for right-angle connections.
- Offers additional security for rail systems.
- Corrosion-resistant coatings are available for outdoor use.
Application: Used in security fencing and high-security rail systems.
The L-shaped security rail bracket ensures that your security measures remain uncompromised.
Pool Fence Bracket
Designed specifically for pool fencing, these brackets are built to withstand constant exposure to water and chemicals. Most pool fence brackets are made from rust-resistant materials such as aluminum or coated steel. They ensure that pool fences remain both secure and aesthetically pleasing, adhering to stringent safety standards.
Advantages:
- It has excellent resistance to chlorine and saltwater corrosion, and the corrosion resistance life can reach more than 25 years.
- It can be easily installed and adjusted without damaging the waterproof layer, saving 30% installation time compared with traditional welding brackets.
Application: Essential for pool fences in residential and commercial settings.
For pool safety, the pool fence bracket provides both strength and aesthetic appeal.

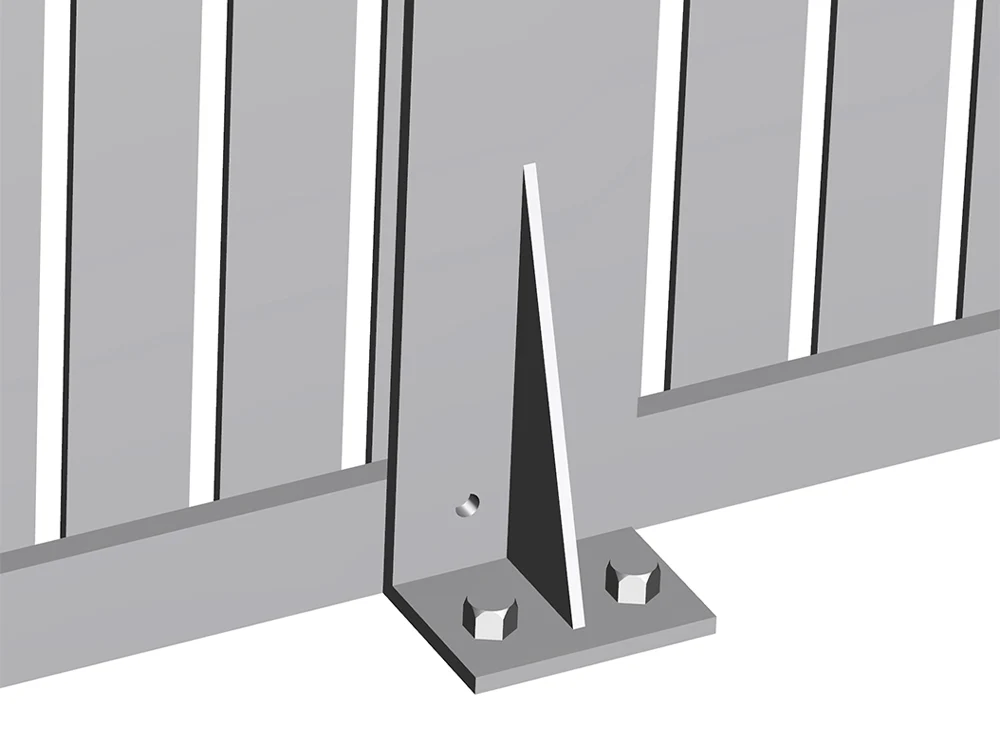

Shark Fin Post Bracket
The shark fin post bracket offers a unique design, featuring extended fins that grip the post securely. This design improves load distribution, thus making it an excellent choice for fences that need extra reinforcement. Shark fin brackets are typically used in areas subject to high winds or where extra post stability is needed.
Advantages:
- Its unique wrap-around design can increase the pull-out resistance of the connection point by more than 40%.
- Anti-deformation risk: Effectively reduce the risk of fence deformation caused by uneven force on the column by 50%.
- Easy to install with minimal tools.
Application: Commonly used in regions with harsh weather conditions or for larger fencing projects.
The shark fin post bracket stands out for its design, thus providing stability where it’s needed most.
Other Types of Brackets
While the above are the most common fence brackets, there are other specialized brackets available depending on your fencing needs. These include swivel brackets for angled fences, corner brackets for complex fence layouts, and adjustable brackets for custom fence designs.
Advantages:
- Tailored solutions for unique fence designs.
- Flexible installation options.
Application: Used in custom fence designs and non-standard layouts.
For specialized needs, custom fence brackets provide flexibility and adaptability.
Installation Methods for Different Fence Brackets
Installing common fence brackets involves understanding the materials, environment, and tools required for the job. For metal brackets, using rust-resistant screws or bolts is essential to prevent corrosion. For wooden fences, brackets should be securely attached using heavy-duty fasteners to ensure long-term stability. Brackets used in high-security or high-wind environments may require additional reinforcements, such as welding or special anchoring techniques.
General Tips:
- Always follow manufacturer guidelines for installation.
- Use corrosion-resistant fasteners in outdoor environments.
- Consider environmental factors like wind or moisture when choosing a bracket.
When installed properly, fence brackets offer long-lasting durability and safety.
Why Choose Us for Your Fence Brackets?
As a professional fence manufacturer, we offer a wide range of high-quality fence brackets designed to meet any project requirement. Here are some key custom capabilities we provide:
Material Choices: We offer brackets in a variety of materials, including galvanized steel, aluminum, and coated metal for corrosion resistance and durability.
Size and Design Customization: From the number of fastener holes to the shape and size of the wings, we can adjust the bracket dimensions to fit your specific fence system.
Surface Treatments: We provide a range of surface treatments like powder coating, zinc plating, and painting to enhance durability and suit different environments.
Special Features: We can incorporate specialized features, such as anti-tamper designs or additional reinforcements for high-wind or high-security applications.
Custom Packaging: We offer tailored packaging solutions to ensure that your products arrive in perfect condition, no matter the shipment size or destination.
Our focus on customization allows us to meet even the most complex project needs, thus offering flexible solutions that deliver superior performance.
Conclusion
Choosing the right fence bracket is crucial for achieving a secure, long-lasting fencing system. Whether you need a fence clamp for temporary fencing or a heavy-duty bracket for a permanent installation, selecting the right type ensures reliability and durability. With our expertise as a leading fence manufacturer, we provide high-quality products common fence brackets, efficient logistics, and custom solutions to meet the demands of any project. Contact us today to learn more about how we can support your next fencing project.
